Titanium Welded Tube

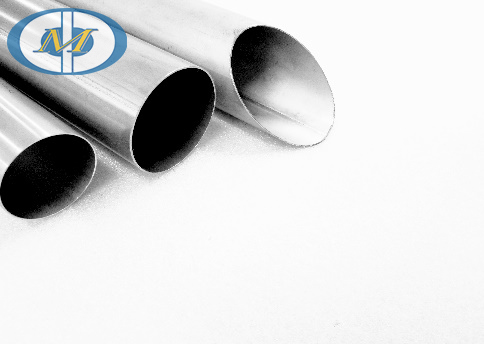

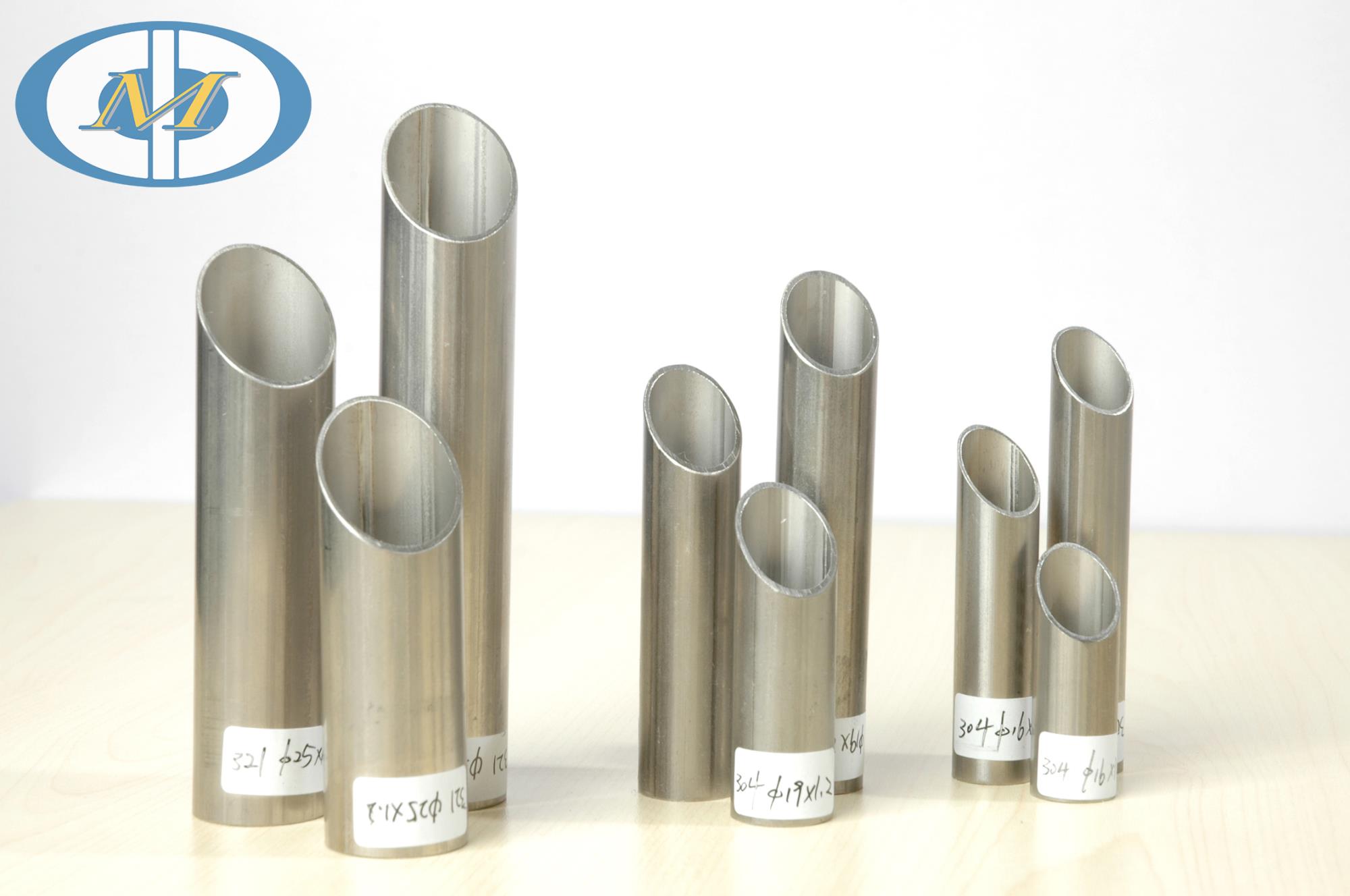

Titanium welded tubes are processed from titanium coil, and longitudinally welded by TIG process without metal filler, so it guarantees the homogeneity of the welded area. what is more, due to the advantages such as evenness of the wall thickness, each tube’s part having the same mechanical properties of the initial coils, more and more process equipment manufactory prefer to choose titanium welded tube rather than seamless for their project.



                Specification and Standard for Welded Tubes
Description Grade Size(mm) Standard
Titanium
Welded
Tube

GR1, GR2 OD(8 to 63)×WT(0.5 to 3)×L
Random length,

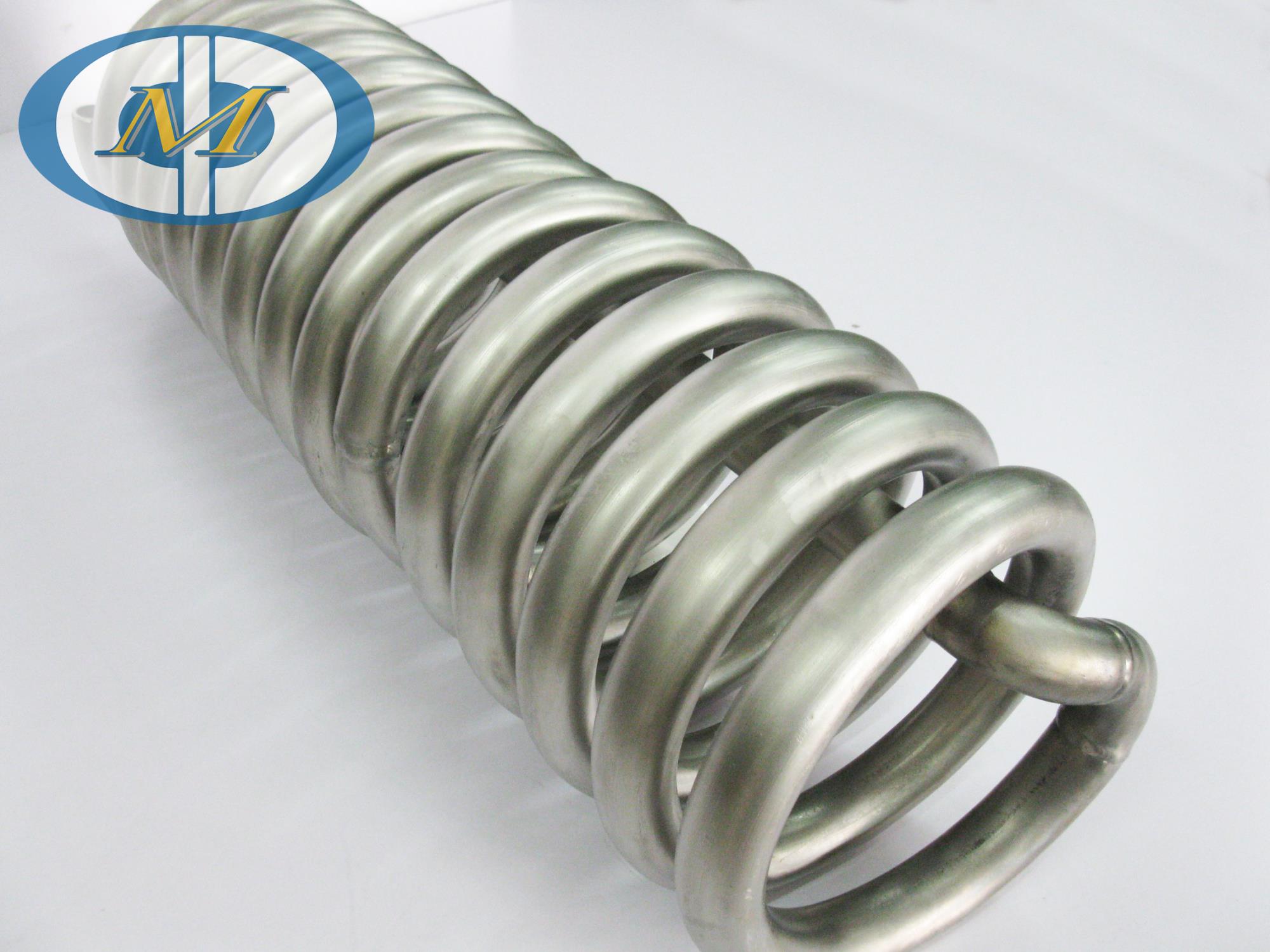

U-Tube, Coil tube
ASTMB338,ASME SB338
Stainless steel

welded tube

Nickel alloy

welded Tube

304,304L,316,316L,

310S,321,2205,2507,C-276,254SMo, 904L,

MONEL400,

INCOLOY800

OD(8 to 63)×WT(0.5 to 3)×L
Random length,
U-Tube, Coil tube
ASTMA249,ASTMA269,

ASTM A312, ASTM A789,ASTM B704, ASTM B626,

                QUALITY TEST OF TITANIUM AND OTHER ALLOY TUBES
                Tests and inspections ensure the materials meet all of the tests specifications of International standard (Such as ASTM B338) and customers’ special requirement.Third party inspection such as TUV, SGS, LR, MOODY, ITS, DNV, as well as customers’ stage-wise inspection are warmly welcome by CDM.
                CDM Provide Following Testing for Ti Welded Tube
Chemical Composition Hydrostatic/
Pneumatic Test
Elongation
Visual Inspection Eddy Current Test Flattening
Ultrasonic Test Reverse-Flat Flaring
Dimensional Inspect Tensile and Yield Hardness
                Mechnical Properties in Annealed Condition at Room Temperature
GRADE STANDARD Tensile Strengths (min) MPa Yield Strengths (min) MPa 50mm Elongation % Max Hardness
Titanium GR1 ASME SB338 240 170~310 24 -
Titanium GR2 ASME SB338 345 275~450 20 -
304 ASTM A249 515 205 35 90HRB
304L ASTM A249 485 170 35 90HRB
316 ASTM A249 515 205 35 90HRB
316L ASTM A249 485 170 35 90HRB
 317 ASTM A249 515 205 35 90HRB
317L ASTM A249 515 205 35 90HRB
310S ASTM A249 515 205 35 90HRB
321 ASTM A249 515 205 35 90HRB
2205 ASTM A789 620 450 30 30HRC
2507 ASTM A789 800 550 15 32HRC
254-SMo ASTM A249 675 310 40 96HRB
904L ASTM A249 490 215 35 90HRB
